Selecting the right air conditioning system for a new HDB BTO, resale flat, or condo is one of the most critical decisions during home setup. In Singapore, the debate almost always comes down to choosing between a System 3 and a System 4 multi-split aircon.
While both connect multiple indoor fan coil units to a single outdoor condensing unit, selecting the wrong capacity can lead to high electricity bills, poor cooling, or unnecessary equipment expenses. In this complete 2026 guide, we break down BTU sizing, HDB layout requirements, price differences, and how to choose the ideal setup for your home.
System 3 vs System 4 Aircon: What is the Difference?
A multi-split aircon system uses one compressor to power multiple indoor units:
- System 3: Connects 3 indoor fan coils to 1 outdoor condenser unit.
- System 4: Connects 4 indoor fan coils to 1 outdoor condenser unit.
Choosing between them isn’t just about counting your total rooms—it depends on how many spaces you actually plan to cool simultaneously.
Side-by-Side Comparison: System 3 vs System 4
| Factor | System 3 Aircon | System 4 Aircon |
|---|---|---|
| Indoor Units | 3 Fan Coil Units | 4 Fan Coil Units |
| Typical Layout | 3-Room / 4-Room HDB, 2-Bed Condo | 5-Room HDB, Executive Flat, 3-Bed Condo |
| Common BTU Config | 9k + 9k + 12k OR 9k + 9k + 18k | 9k + 9k + 9k + 18k (or 24k) |
| Estimated Package Cost | S$3,900 – S$7,000 | S$5,000 – S$9,000 |
| Outdoor Unit Footprint | Compact, fits standard HDB ledges easily | Larger unit; requires verified ledge clearance |
How to Calculate Required Aircon BTU Sizing in Singapore
Cooling capacity is measured in British Thermal Units (BTU). Installing an undersized aircon causes the compressor to run continuously at maximum load, spiking power bills and causing premature wear.
Standard Sizing Rules for Singapore Homes
- Common Bedrooms (10 to 14 sqm): 9,000 BTU.
- Master Bedrooms (15 to 18 sqm): 12,000 BTU.
- Standard Living Rooms (20 to 30 sqm): 18,000 BTU.
- Large Open Living Rooms (30+ sqm / West Sun Exposure): 22,000 to 24,000 BTU.
Pro-Tip: If your room faces afternoon West sun or has floor-to-ceiling glass windows, add 15% to 20% to your baseline BTU calculation.
When Should You Choose System 3 vs System 4?
Choose System 3 If:

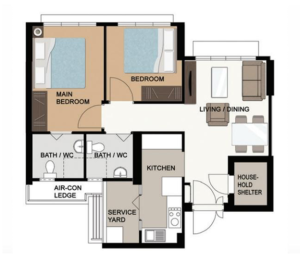

- You live in a 3-Room or 4-Room HDB BTO flat where you only need cooling in 2 bedrooms and the living room.
- The 3rd bedroom is used strictly as an open study or storage room that doesn’t need air conditioning.
- You want to maximize monthly utility savings with a lower baseline compressor load.
Choose System 4 If:
- You have a 5-Room HDB, Executive Apartment, or 3-Bedroom Condo where all 3 bedrooms and the main living room need independent cooling.
- You want to future-proof your home for growing family needs or working from home.
Critical Technical Checks Before Buying
Before confirming your order, verify these two site requirements with a qualified installer:
- HDB Aircon Ledge Dimensions: System 4 outdoor condensers are larger. Ensure there is adequate clearance for airflow and service maintenance access.
- Electrical DB Box Capacity: Confirm your main electrical board and breaker ratings can safely handle higher compressor current draws without tripping.
- Energy Rating (NEA 5-Ticks): Opt for 5-tick energy-efficient models to unlock long-term energy savings and potential government rebates.
Get Expert Sizing & Installation Guidance
Selecting the right multi-split configuration ensures optimal cooling comfort while preventing unnecessarily high electricity bills. Contact our certified installation team today to schedule a site assessment and receive an itemized proposal for your home.
