Aircon installation for HDB flats in Singapore has rules and costs homeowners frequently miss. Ledge load limits, drainage rerouting on resale flats, electrical upgrades on older units, and hidden line items not in the headline quote all matter. This blog will walk you through whata compliant HDB install covers, the BTO versus resale differences, and what to budget for.

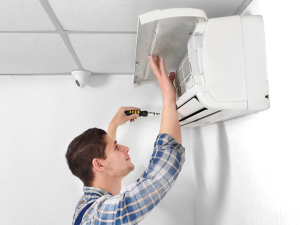

HDB aircon installation rules you must follow
The structural load and main switch capacity differ by flat age. Pre-1994 HDB flats run on a 30A main switch, with maximum outdoor unit weight per panel capped at 80kg. Post-1994 flats and any unit upgraded under the Home Improvement Programme run on a 40A main switch, allowing maximum outdoor unit weight up to 110kg per panel. This determines what system size your flat can physically support before you even pick a brand.Bracket material is non-negotiable. BothHDB’s renovation guidelines for aircon installation andBCA’s air-conditioning safety guidelines require stainless steel brackets, with Grade 304 as the practical standard for Singapore’s humid climate. Galvanised steel doesn’t meet the requirement for new installations.Drainage routing has changed and many older flats are out of date. HDB’s current rules require condensation water to discharge into an internal floor trap, typically the bathroom drain. Older flats with drainage piped through the external wall to drip down the building façade are non-compliant and a frequent source of town council complaints. Resale flat installations almost always need drainage rerouted to bring the unit up to code.Form AC-02 must be submitted by the BCA-trained installer to HDB within 14 days of completion. The form documents the install location, technician credentials, and bracket specifications. Most homeowners don’t ask about it. Most cowboy installers skip it. If your installer can’t tell you when they’ll submit Form AC-02, that’s the answer to whether they’re a real HDB installer.For older flats without a dedicated aircon ledge, brackets must be installed in HDB-approved positions. The approved spots are usually below the master bedroom window or on the service balcony external wall. Drilling outside these positions risks structural compliance issues and is the kind of mistake that generates fines years later when the flat is sold.

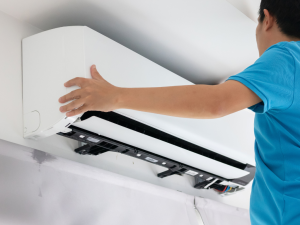

BTO aircon installation: what’s different
A new BTO flat is the cleanest aircon install scenario in Singapore. Three reasons.The 40A main switch is built in. Newer BTO flats won’t constrain you to small systems the way older 30A flats can. A System 3 or System 4 is feasible without electrical panel upgrades, and the main switch can comfortably handle simultaneous use of multiple aircon units, kitchen appliances, and water heater.Pre-laid concealed trunking is available through the Optional Component Scheme. If you opted into OCS aircon during your BTO selection, the developer’s appointed contractor pre-installs the copper piping and drainage routes inside the wall before tile finishing. Subsequent replacement and servicing become simpler. If you didn’t opt into OCS, your contractor runs trunking after move-in, usually exposed in PVC casing along ceiling edges.Timing matters. The cleanest install window is after defects rectification (DLP inspection) but before move-in. The flat is empty, the BCA-trained installer can work without furniture restrictions, and dust from drilling doesn’t end up in your wardrobe. Booking 2 to 3 weeks before move-in is the practical sweet spot.The trade-off with OCS is brand selection. The OCS aircon usually comes from a specific brand picked by the developer, often Mitsubishi, Daikin, or Panasonic depending on the project. If you want a different brand or a different system size, you decline the OCS aircon at selection and engage a separate installer post-keys. The trunking will still be pre-laid for the OCS brand’s specifications, which sometimes constrains aftermarket installs.
Resale flat aircon installation: what’s different
A resale flat install is more complicated than a BTO install for one reason: legacy infrastructure. The previous owner’s choices come with the flat.Existing trunking route is usually exposed PVC. Older resale flats rarely have concealed trunking. The new install typically reuses the existing route, which means the indoor unit position is partially constrained by where the trunking already runs.Existing copper piping is the major decision. Budget installers reuse old copper to save material cost. Old copper has internal residue from the previous refrigerant, possible micro-cracks from years of pressure cycling, and uncertain insulation integrity. The right approach is a pressure test on the existing lines before deciding. Theaircon replacement decision framework covers when reuse is acceptable and when it isn’t. New copper for a fresh install is the safer default.Drainage compliance check is almost always necessary. Older flats often have wall-routed drainage that’s no longer permitted. Bringing it up to code during install adds 2 to 4 hours and S$200 to S$400 of work, but it stops town council complaints and the slow water staining on the external façade.Electrical capacity check matters more than buyers expect. Pre-1994 flats running on 30A main switches limit what systems can be installed. Upgrading the main switch to 40A under HDB’s Home Improvement Programme isn’t always available, and a private electrical upgrade runs into HDB approval requirements. For some older flats, the practical solution is a smaller system size rather than fighting the electrical limit.Removal and disposal of the old unit doesn’t usually appear in headline quotes. Disposal of an old condenser unit costs S$50 to S$120 separately. If the old unit needs refrigerant recovery (R22 units especially), the recovery work adds another S$80 to S$150 and must be done by an NEA-certified handler under regulated refrigerant rules.
Hidden costs most HDB homeowners miss
The headline quote covers indoor units, outdoor unit, copper piping, basic labour, and standard drainage. The line items that often appear later:
Bracket replacement.
S$150 to S$250 per bracket for Grade 304 stainless steel. Older flats without a ledge or with corroded existing brackets need this and it rarely appears in the initial quote.
Drainage rerouting to internal floor trap.
S$200 to S$400 if the old flat has wall-routed drainage. Adds hours to the install but is required for HDB compliance.
Trunking concealment.
Concealed trunking inside walls costs S$300 to S$600 more than exposed PVC casing. Concealed work also requires hacking and re-tiling, which adds another 1 to 2 days and S$200 or more in patching costs.
Electrical isolator switch and MCB.
A new dedicated isolator at the AC ledge costs S$80 to S$150 if it’s not already installed. New circuit breakers on the distribution panel run S$60 to S$120 each. Both need an EMA-licensed electrical worker.
Wall patching after drilling.
S$50 to S$150 for plaster repair and paint touch-up where holes were drilled for trunking. Some installers include this, most don’t.
Old unit removal and disposal.
S$50 to S$120 per unit. Refrigerant recovery on old R22 units adds another S$80 to S$150 because of NEA regulations.
Brand-specific accessories.
Some indoor units require brand-matched remote controls, smart Wi-Fi modules, or wall-mount adaptors not included with the base unit. Range varies, but budget S$50 to S$200 extra for premium brand accessories.A complete HDB System 3 install with all these line items priced in usually lands in the S$2,400 to S$3,400 range, depending on brand and flat condition. Quotes significantly below that range are usually omitting line items that resurface mid-install.
Noise hours and HDB renovation rules during install
Two sets of rules apply. Worth not confusing.HDB’s renovation noise rules govern contractor work. General work, which covers most aircon install activities like trunking placement and indoor unit mounting, is permitted from 9am to 6pm on weekdays and Saturdays. Noisy work, including drilling for new brackets, hacking for concealed trunking, and bracket replacement, is restricted to 9am to 5pm on weekdays only. Saturdays, Sundays, and public holidays are off-limits for noisy work.If your installer wants to drill on a Sunday afternoon to fit a tight schedule, that’s an HDB rules violation and a town council complaint waiting to happen. Reschedule.The 7am to 10:30pm guideline you may have seen elsewhere is for DIY work by residents (assembling furniture, light drilling, hanging shelves), not for contracted aircon installation. The two sets of rules are often confused.For complex installs involving concealed trunking and full bracket replacement, expect 1 to 2 days of work, scheduled across weekday daytime hours. Plan accordingly so you don’t end up paying for accommodation costs because the install couldn’t finish on schedule.
Conclusion
HDB aircon installation isn’t difficult, but it has constraints other property types don’t share. The 30A or 40A main switch determines what systems fit. Form AC-02 must be submitted within 14 days. Drainage must reach an internal floor trap. Bracket material must be Grade 304 stainless steel. The hidden costs that don’t appear in headline quotes are usually compliance-related work that should have been priced in from the start.Before booking your HDB aircon install, check your flat’s main switch capacity, ask about the full scope of work in writing, confirm the installer will submit Form AC-02, and check that drainage routes to an internal floor trap rather than the external wall. SACES handles HDB aircon installation across Singapore with BCA-trained technicians, NEA-listed R32 installers, and full documentation.Speak to the SACES team about your HDB aircon installation.
FAQ About Aircon Installation For HDB
Do I need a permit to install aircon in my HDB flat?
For most installations in newer HDB flats with 40-amp electrical capacity, a separate HDB renovation permit isn’t required. The BCA-trained installer must still submit Form AC-02 to HDB within 14 days of completion. Installations involving structural alterations or work outside HDB-approved positions may need additional permit applications.
What’s the difference between BTO and resale aircon installation?
BTO flats have newer 40A electrical capacity and can include pre-laid concealed trunking through the Optional Component Scheme. Resale flats often need drainage rerouting to comply with current rules, electrical capacity verification, and decisions about whether to reuse or replace existing copper piping. Resale installs typically take longer.
How long does HDB aircon installation take?
A System 3 install in a typical HDB takes 8 to 10 hours when piping routes are simple and existing infrastructure is sound. System 4 setups run 1 to 2 days. Resale flats with drainage rerouting or trunking concealment can extend to 2 days even for System 3. BTO installs are usually quicker.
Can my contractor drill in my HDB flat on weekends?
Light or general work like indoor unit mounting can run 9am to 6pm on Saturdays, but heavy drilling for brackets or hacking for concealed trunking is weekdays only, 9am to 5pm. Sundays and public holidays are off-limits for noisy aircon work. Town councils enforce these rules through complaints.
What hidden costs should I budget for in HDB aircon installation?
Bracket replacement (S$150-250), drainage rerouting (S$200-400), trunking concealment (S$300-600), electrical isolator (S$80-150), wall patching (S$50-150), old unit removal (S$50-120), and brand-specific accessories. A complete System 3 install with all line items typically reaches S$2,400 to S$3,400.
